Simple example

This Section demonstrates how to apply our pymcdm library in a simple case. It will be demonstrated on an artificial decision matrix with 3 criteria and 4 alternatives.

import os

import numpy as np
import matplotlib.pyplot as plt

from pymcdm.methods import TOPSIS
from pymcdm.helpers import rrankdata
from pymcdm.correlations import weighted_spearman
from pymcdm.helpers import correlation_matrix

if not os.path.isdir('./images'):
    os.mkdir('./images')

Definition of a decision matrix. Usually, you will want to read one from the file.

alts = np.array([
    [4, 4, 0.2],
    [1, 5, 0.5],
    [3, 2, 0.3],
    [4, 3, 0.5]
])

Define the vector of weights. The Sum of the weights should be equal 1.

weights = np.array([0.3, 0.5, 0.2])

Define criteria types. The first and third are benefits, so we have 1 in types vector, and the second one is a cost, so we have -1 in this vector.

types = np.array([1, -1, 1])

In the pymcdm library, every MCDA method is a class, so we first need to crate the object of out method. Some methods allow a certain degree of customization, e.g., the TOPSIS method allows to change normalization method in the constructor. Default normalization is a min-max normalization.

topsis = TOPSIS()

Next, we want to apply the chosen method to our MCDA problem.

pref = topsis(alts, weights, types)
print(np.round(pref, 4))

[0.4689 0.2554 0.765  0.7466]

So we have calculated the preferences of the given four alternatives. The last one has a preference equal to 1, so this one is the best alternative. For the TOPSIS method, the most significant value of the preference means a better alternative. For other methods, you should check our documentation or methods described.

The last thing we want to do here is building of the ranking. We will use rranking method from the helpers module of the pymcdm library to rank those alternatives from the most significant preference value to the lowest preference value.

rank = rrankdata(pref)
print(rank)

[3. 4. 1. 2.]

Alternatively, every method’s object has a rank() method, which allows correctly ranking obtained preference.

rank = topsis.rank(pref)
print(rank)

[3. 4. 1. 2.]

So our ranking is [3, 4, 2, 1], but how to interpret those values? The first value in the ranking is 3, corresponding to the first alternative, so the alternative \(A_1\) has position 3 in the ranking. Alternative \(A_2\) has 4th position, \(A_3\) has 2nd position, and \(A_4\) has the first position in the final ranking.

Using several MCDA methods for a decision problem

In this example, we want to show how to apply several MCDA methods to a decision problem. We will show how to apply TOPSIS, MABAC COMET, and SPOTIS.

We show how to read data from csv using pandas, and then we need to create objects of the chosen methods. Because of the uniform interface of every method, we could create a list of the MCDA methods objects and then apply those methods using for loop.

import pandas as pd

from pymcdm.methods import TOPSIS, MABAC, COMET, SPOTIS
from pymcdm import weights as w
from pymcdm.helpers import rankdata, rrankdata
from pymcdm.methods.comet_tools import MethodExpert

df = pd.read_csv('vans.csv')

# Use only columns with numerical data
alts = df[df.columns[3:]].to_numpy()

df

	code	name	manufacturer	carryfying capacity	max velocity	travel range	engine power	engine torque	battery charging 100%	battery charging 80%	battery capacity	price
0	A1	EVI MD	Electric Vehicles International	3000	96	145	200	610	10.0	120	99.0	120.0
1	A2	EVI Walk-In Van	Electric Vehicles International/Freightliner ...	2000	100	145	200	610	10.0	120	99.0	90.0
2	A3	e-NV200+	Nissan	705	120	170	80	270	4.0	30	24.0	25.0
3	A4	e-Wolf Omega 0.7	e-Wolf	613	140	180	140	400	8.0	40	24.2	50.0
4	A5	Minicab-MiEV Truck	Mitsubishi Motors Corp.	350	100	110	30	196	4.5	15	10.5	12.9
5	A6	Mitsubishi Minicab-MiEV (10.5 kWh)	Mitsubishi Motors Corp.	350	100	100	30	196	4.5	15	10.5	15.5
6	A7	Mitsubishi Minicab-MiEV (16kWh)	Mitsubishi Motors Corp.	350	100	150	30	196	7.0	35	16.0	18.7
7	A8	Partner Panel Van	Peugeot	635	110	170	49	200	8.0	35	22.5	31.5
8	A9	Phoenix Motorcars SUV	Phoenix Motorcars	340	150	160	110	500	6.0	10	35.0	45.0
9	A10	Piaggio Porter electric-power	Piaggio Porter	750	57	110	10	80	8.0	120	35.0	24.4

# Define weights and criteria types.
weights = w.entropy_weights(alts)
types = np.array([1, 1, 1, 1, 1, -1, -1, 1, -1])

# To use the COMET method, we need to define characteristic values.
# It could be achieved using `make_cvalues` static method of a COMET object.
# Alternatively, characteristic values should be provided by an expert.
cvalues = COMET.make_cvalues(alts)

# COMET method also uses a expert_function to rate characteristic objects.
# To automatize the process, `MethodExpert` class could be used.
expert_function = MethodExpert(TOPSIS(), weights, types)

# A similar thing should be done for the SPOTIS method. For this method decision
# bounds should be provided. Bounds could be defined by a decision maker or
# calculated automatically from the data.
bounds = SPOTIS.make_bounds(alts)

Finally, we could define a list of chosen methods.

methods = [
    TOPSIS(),
    MABAC(),
    COMET(cvalues, expert_function),
    SPOTIS(bounds)
]

method_names = ['TOPSIS', 'MABAC', 'COMET', 'SPOTIS']

Now we want to apply those methods in the for loop to get rankings and the preferences for this decision problem.

prefs = []
ranks = []

for method in methods:
    pref = method(alts, weights, types)
    rank = method.rank(pref)

    prefs.append(pref)
    ranks.append(rank)

And then, we want to construct and show tables with preferences and rankings for every alternative.

a = [f'$A_{{{i+1}}}$' for i in range(len(prefs[0]))]
pd.DataFrame(zip(*prefs), columns=method_names, index=a).round(3)

	TOPSIS	MABAC	COMET	SPOTIS
$A_{1}$	0.576	0.229	0.746	0.368
$A_{2}$	0.562	0.199	0.691	0.397
$A_{3}$	0.459	0.068	0.396	0.529
$A_{4}$	0.464	0.073	0.399	0.523
$A_{5}$	0.430	-0.013	0.282	0.610
$A_{6}$	0.427	-0.018	0.276	0.614
$A_{7}$	0.398	-0.049	0.221	0.646
$A_{8}$	0.412	-0.016	0.278	0.613
$A_{9}$	0.498	0.128	0.497	0.468
$A_{10}$	0.300	-0.185	0.076	0.782

pd.DataFrame(zip(*ranks), columns=method_names, index=a).astype('int')

	TOPSIS	MABAC	COMET	SPOTIS
$A_{1}$	1	1	1	1
$A_{2}$	2	2	2	2
$A_{3}$	5	5	5	5
$A_{4}$	4	4	4	4
$A_{5}$	6	6	6	6
$A_{6}$	7	8	8	8
$A_{7}$	9	9	9	9
$A_{8}$	8	7	7	7
$A_{9}$	3	3	3	3
$A_{10}$	10	10	10	10

Visualisation of the rankings

The pymcdm library also includes more than ten ways to visualize results obtained with different methods. First, we will demonstrate four ways to visualize the differences between different rankings.

The first two ways are a ranking_bar and ranking_flows functions from visuals sub-module. You could just use those functions or provide an Axes on which those plots should be drawn.

from pymcdm import visuals

fig, ax = plt.subplots(figsize=(7, 3), dpi=150, tight_layout=True)
visuals.ranking_bar(ranks, labels=method_names, ax=ax)
plt.savefig('images/ranking_bar.pdf', bbox_inches='tight')
plt.show()

fig, ax = plt.subplots(figsize=(7, 3), dpi=150, tight_layout=True)
visuals.ranking_flows(ranks, labels=method_names, ax=ax)
plt.savefig('images/ranking_flows.pdf', bbox_inches='tight')
plt.show()

The next one is a polar_plot function, which creates a web plot of different rankings. It would help if you created Axes with an 'polar' projection, or this function will not work.

fig, ax = plt.subplots(figsize=(4, 4), dpi=150, tight_layout=True, subplot_kw=dict(projection='polar'))
visuals.polar_plot(ranks, labels=method_names, legend_ncol=2, ax=ax)
plt.savefig('images/polar_plot.pdf', bbox_inches='tight')
plt.show()

The next is a ranking_scatter function, which visualizes your rankings as scatter points. This function could visualize only two rankings.

fig, ax = plt.subplots(figsize=(4, 4), dpi=150, tight_layout=True)
visuals.ranking_scatter(ranks[0], ranks[1], ax=ax)
plt.savefig('images/ranking_scatter.pdf', bbox_inches='tight')
plt.show()

It is also possible to visualize the correlations between the rankings as change of the correlations as it showed below.

corrs = []
for r in ranks:
    corrs.append(weighted_spearman(ranks[0], r))

fig, ax = plt.subplots(figsize=(7, 2.5), dpi=150, tight_layout=True)
visuals.correlation_plot(corrs, ylim=(0.95, 1.01), space_multiplier=0.5, labels=method_names, ax=ax)
plt.savefig('images/correlation_plot.pdf', bbox_inches='tight')
plt.show()

There is also a function which combine correlation_plot as well as ranking_flows function, which allow visualize it in simply way.

 fig, ax = plt.subplots(figsize=(7, 5), dpi=150, tight_layout=True)
visuals.rankings_flow_correlation(ranks,
                                  corrs,
                                  labels=method_names,
                                  correlation_plot_kwargs=dict(space_multiplier=0.5, ylim=(0.95, 1.01)),
                                  ax=ax)
plt.savefig('images/ranking_flow_correlation.pdf', bbox_inches='tight')
plt.show()

Visualization of the correlations between rankings

The following function allows us to visualize the correlations between several rankings.

# Basic usage
corr_matrix = correlation_matrix(np.array(ranks), weighted_spearman)

visuals.correlation_heatmap(corr_matrix, labels=method_names)
plt.savefig('images/heatmap1.pdf', bbox_inches='tight')
plt.show()

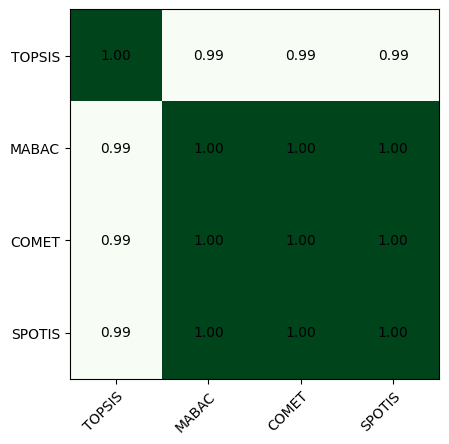

Those plots are highly customizable, you could see more comlex example below.

# More complex example
corr_matrix = correlation_matrix(np.array(ranks), weighted_spearman)

fig, ax = plt.subplots(figsize=(4, 4), dpi=150, tight_layout=True)
visuals.correlation_heatmap(corr_matrix,
                            labels=method_names,
                            labeltop=True,
                            cmap='Blues',
                            adapt_text_colors=['k', 'w'],
                            colorbar=True,
                            ax=ax)
plt.savefig('images/heatmap2.pdf', bbox_inches='tight')
plt.show()

COMET visualization

Using the COMET method in your research, you could visualize the MEJ matrix and characteristic objects with our library. We will demonstrate this on a two-criterion subset of the decision matrix.

criteria_names = ['engine power', 'engine torque']
alts = df[criteria_names].to_numpy()

weights = np.ones(2) / 2
types = np.ones(2)
cvalues = COMET.make_cvalues(alts)

comet = COMET(cvalues, MethodExpert(TOPSIS(), weights, types))

First, we can draw the MEJ matrix, which is used for characteristic rating objects. Green pixels mean 1, and red pixels mean 0. Blue ones are for ties (0.5).

fig, ax = plt.subplots(figsize=(4, 4), dpi=150, tight_layout=True)
visuals.mej_plot(comet.get_MEJ())
plt.savefig('images/mej.pdf', bbox_inches='tight')
plt.show()

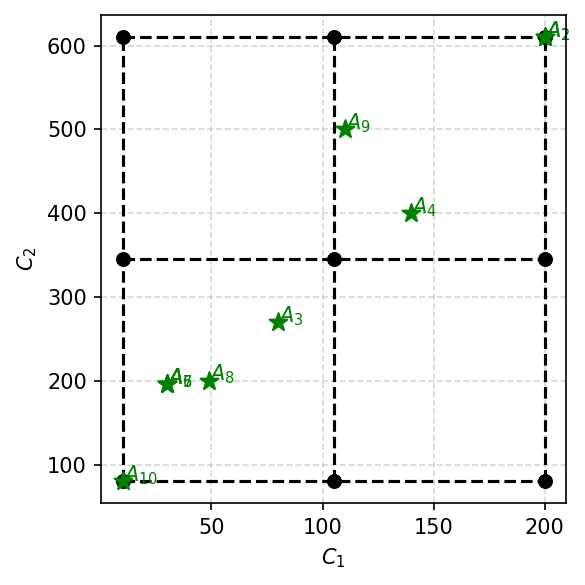

The following visualization is a plot of characteristic objects with alternatives. This one will work only in the case of 2 criteria.

fig, ax = plt.subplots(figsize=(4, 4), dpi=150, tight_layout=True)
visuals.comet_2d_plot(cvalues, alts)
plt.savefig('images/comet2d.pdf', bbox_inches='tight')
plt.show()

It is also possible to add contourf which presents change of the preference function.

fig, ax = plt.subplots(figsize=(4, 4), dpi=150, tight_layout=True)
visuals.comet_contourf(comet,
                       alts,
                       colorbar=True)
plt.savefig('images/comet_contourf.pdf', bbox_inches='tight')
plt.show()

There is also a function which draw TFNs functions for the built COMET. See next example.

fig, axes = plt.subplots(2, 1, figsize=(5, 4), dpi=150)
for i in range(2):
    visuals.comet_tfns(comet,
                       criterion_index=i,
                       criterion_name=criteria_names[i],
                       colors=['tab:blue', 'tab:red', 'tab:green'],
                       plot_kwargs=dict(lw=2),
                       ax=axes[i])
plt.tight_layout()
plt.savefig('images/comet_tfs.pdf', bbox_inches='tight')
plt.show()

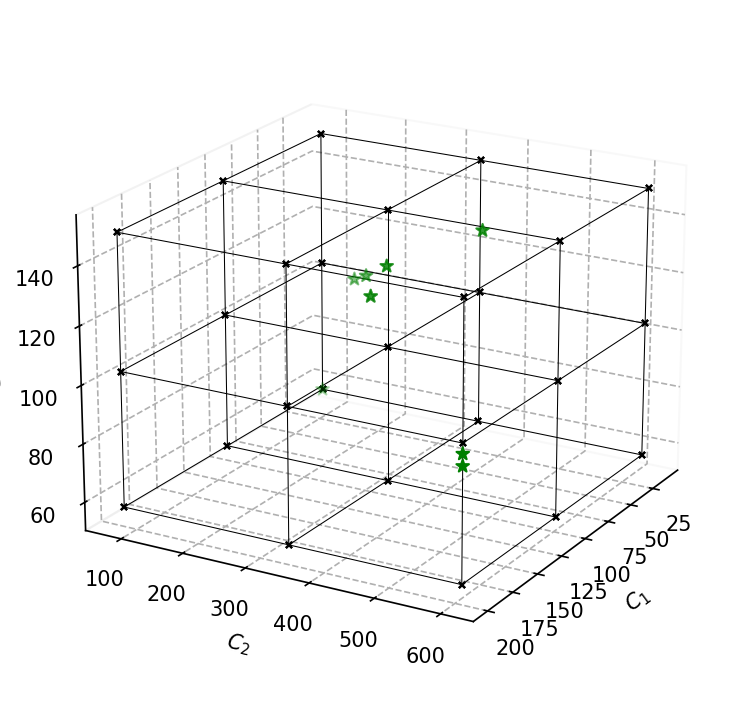

There is also a 3d version of this plot that supports 3 criteria. Notice that the axis should be created with projection='3d' argument.

alts = df[['engine power', 'engine torque', 'max velocity']].to_numpy()

cvalues = COMET.make_cvalues(alts)

fig, ax = plt.subplots(figsize=(5, 5), dpi=150, tight_layout=True, subplot_kw=dict(projection='3d'))
visuals.comet_3d_plot(cvalues, alts, ax=ax)
plt.savefig('images/comet3.pdf', bbox_inches='tight')
plt.show()

Weights visualization

With our library is also possible to calculate criteria weights with different objective methods and visualize them on the bar diagrams as shown below.

from pymcdm import weights as w

# Get full decision matrix once again
alts = df[df.columns[3:]].to_numpy()

# Define list with several weighting methods
weighting_methods = [
    w.equal_weights,
    w.entropy_weights,
    w.standard_deviation_weights,
    w.gini_weights
]

weight_sets = []
for m in weighting_methods:
    weight_sets.append(m(alts))

fig, ax = plt.subplots(figsize=(7, 3), dpi=150, tight_layout=True)

visuals.weights_plot(weight_sets,
                     xticklabels=['Equal', 'Entropy', 'Std', 'Gini'],
                     legend_ncol=9,
                     ax=ax)
plt.savefig('images/weights.pdf', bbox_inches='tight')
plt.show()

fig, ax = plt.subplots(figsize=(5, 6), dpi=150, tight_layout=True, subplot_kw=dict(projection='polar'))

visuals.polar_weights(weight_sets,
                      xticklabels=['Equal', 'Entropy', 'Std', 'Gini'],
                      legend_ncol=5,
                      ax=ax)
plt.tight_layout()
plt.savefig('images/weights_polar.pdf', bbox_inches='tight')
plt.show()

PROMETHEE I partial ranking visualization

Our library also have an implementation of the PROMETHEE I method which could build only a partial ranking. This ranking could be visualized as a graph or as a flows as it shown below.

from pymcdm.methods.partial import PROMETHEE_I

prom = PROMETHEE_I(preference_function='usual')

# Once again create weights and types of criteria
weights = w.entropy_weights(alts)
types = np.array([1, 1, 1, 1, 1, -1, -1, 1, -1])

# You should pass promethee_I=True argument to get PROMETHEE I output
Fp, Fm = prom(alts, weights, types)

fig, ax = plt.subplots(figsize=(4, 4), dpi=150, tight_layout=True)

visuals.promethee_I_flows(Fp, Fm)
plt.savefig('images/promethee_flows.pdf', bbox_inches='tight')
plt.show()

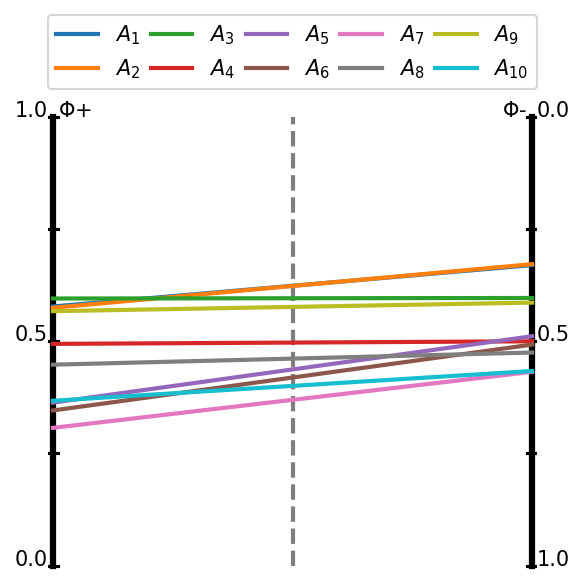

fig, ax = plt.subplots(figsize=(4, 4), dpi=150, tight_layout=True)

visuals.promethee_I_graph(Fp, Fm)
plt.savefig('images/promethee_graph.pdf', bbox_inches='tight')
plt.show()

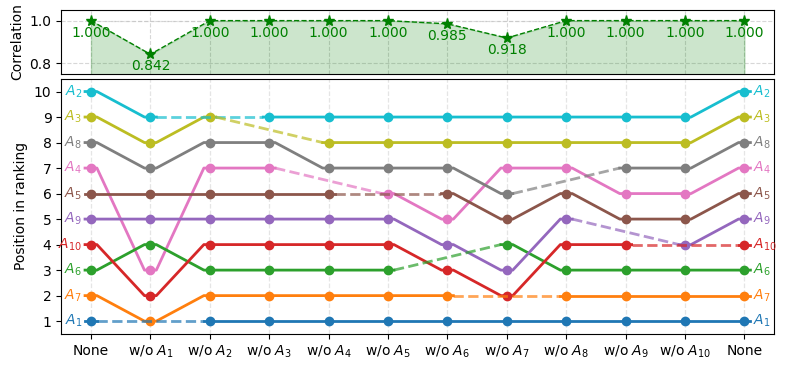

Visualization of many correlations

This function could be used to visualize the distribution of the correlations of many rankings. We will provide only a simple example to show how to use them.

data = np.array([
    np.random.rand(100),
    np.random.rand(100),
])

fig, ax = plt.subplots(figsize=(6, 4), dpi=150, tight_layout=True)

visuals.boxplot(data)
plt.savefig('images/boxplot.pdf', bbox_inches='tight')
plt.show()

fig, ax = plt.subplots(figsize=(6, 4), dpi=150, tight_layout=True)

visuals.violin(data)
plt.savefig('images/boxplot.pdf', bbox_inches='tight')
plt.show()

Another example on rank reversal

import numpy as np
import matplotlib.pyplot as plt
import pymcdm as pm

# Ensure the same result each time
np.random.seed(1)

# Generate random decision matrix with 10 alternatives and 4 criteria
matrix = np.random.rand(10, 4)
# Set equal weights for all of the criteria
weights = pm.weights.equal_weights(matrix)
# Types of the criteria: two profit and two cost criteria
types = np.array([1, 1, -1, -1])

# Create method's object
waspas = pm.methods.WASPAS()

# Use leave_one_out function to produce the input for the visualization
# in order to analyse rank reversal for this particular case
rankings, corr, labels = pm.helpers.leave_one_out_rr(
        method=waspas, matrix=matrix, weights=weights, types=types,
        corr_function=pm.correlations.weighted_spearman,
        only_rr=False)

# Create the visualization of the changes in the rankings.
# kwargs are used to tweak the appearense of the visualization.
fig, ax = plt.subplots(figsize=(8, 3.8))
ax, cax = pm.visuals.rankings_flow_correlation(
        rankings=rankings, correlations=corr, labels=labels,
        correlation_plot_kwargs=dict(space_multiplier=0.15),
        ranking_flows_kwargs=dict(better_grid=True),
        ax=ax)
cax.set_ylim(0.75, 1.05)
plt.tight_layout()
plt.show()
